Choosing between an EP Conveyor Belt and an NN Conveyor Belt depends on the conveyor’s tension, material, loading conditions, pulley diameter, take-up arrangement, and required flexibility.

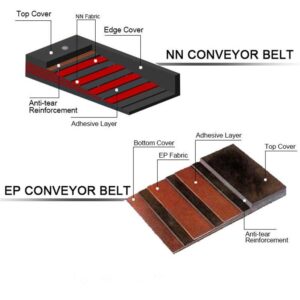

The fundamental difference is the textile carcass:
- EP Conveyor Belt: Polyester warp + Nylon weft
- NN Conveyor Belt: Nylon warp + Nylon weft
EP generally provides lower longitudinal elongation and better dimensional stability, while NN generally provides greater elasticity, flexibility, and impact absorption. Neither is universally better; the correct choice depends on the conveyor design.
EP Conveyor Belt
An EP Conveyor Belt uses polyester reinforcement in the longitudinal direction and nylon reinforcement in the transverse direction.
The polyester warp carries the primary longitudinal tensile load and provides relatively low elongation. The nylon weft provides transverse flexibility and helps the belt form a trough over carrying idlers.
We also Manufacture Nylon Conveyor Belt , MRF Conveyor Belt , SHR Conveyor Belt , White Elevator Belt , Oil Resistant Conveyor Belt
EP vs NN Conveyor Belt Selection Calculator
Compare EP and NN textile carcass constructions based on your conveyor operating conditions and application requirements.
| Technical Factor | Selection Indication |
|---|---|
| Longitudinal Elongation | |
| Flexibility & Elasticity | |
| Impact Conditions | |
| Conveyor Length | |
| Final Selection Basis |
EP Conveyor Belt Technical Specifications
| Technical Parameter | EP Conveyor Belt Specification |
|---|---|
| Carcass Construction | EP – Polyester warp / Nylon weft |
| Longitudinal Reinforcement | Polyester |
| Transverse Reinforcement | Nylon |
| Tensile Rating | Application-specific, specified in N/mm |
| Common Tensile Classes | EP 315, EP 400, EP 500, EP 630 and higher |
| Ply Construction | 2, 3, 4, 5 or more plies, depending on belt design |
| Longitudinal Elongation | Generally lower than NN construction |
| Flexibility | Good |
| Troughability | Good to very good, depending on construction |
| Top Cover | Application-specific thickness and rubber compound |
| Bottom Cover | Application-specific thickness and rubber compound |
| Cover Grades | General purpose, abrasion resistant, heat resistant, oil resistant, flame resistant and other application-specific grades |
| Belt Width | Selected according to conveyor capacity and design |
| Belt Length | Manufactured according to conveyor requirements |
| Edge Construction | Moulded or cut edge, as specified |
| Splicing | Hot vulcanized or other approved method |
| Typical Applications | Mining, cement, aggregate, stone crushing, power plants, ports and bulk material handling |
NN Conveyor Belt
An NN Conveyor Belt uses nylon reinforcement in both the longitudinal and transverse directions.
Nylon provides high flexibility and elasticity. NN construction can therefore be useful where the belt experiences repeated bending, demanding troughing conditions, or significant impact loading.
NN Conveyor Belt Technical Specifications
| Technical Parameter | NN Conveyor Belt Specification |
|---|---|
| Carcass Construction | NN – Nylon warp / Nylon weft textile carcass |
| Longitudinal Reinforcement | Nylon, providing high flexibility and elastic behaviour under tension |
| Transverse Reinforcement | Nylon, providing good transverse flexibility and trough-forming capability |
| Tensile Rating | Selected according to conveyor tension and application requirements, normally specified in N/mm |
| Common Tensile Classes | NN 315, NN 400, NN 500, NN 630 and higher, depending on belt design |
| Ply Construction | 2, 3, 4, 5 or more fabric plies according to required strength and belt construction |
| Longitudinal Elongation | Generally higher than EP construction due to the elastic characteristics of nylon |
| Flexibility | Very good, making NN construction suitable for demanding bending and flexing conditions |
| Troughability | Very good when the carcass, belt width and idler configuration are correctly matched |
| Impact Behaviour | Good to very good, depending on carcass design, top cover thickness, rubber compound and loading conditions |
| Top Cover | Application-specific thickness and rubber compound selected according to abrasion, impact, temperature or other service conditions |
| Bottom Cover | Application-specific thickness and rubber compound designed for pulley and return-side operating conditions |
| Cover Grades | General purpose, abrasion resistant, heat resistant, oil resistant, flame resistant and other application-specific grades |
| Belt Width | Selected according to material capacity, belt speed, troughing arrangement and conveyor design |
| Belt Length | Manufactured according to conveyor centre distance, take-up arrangement and installation requirements |
| Pulley Compatibility | Must be selected with consideration for belt thickness, carcass construction, bending requirements and pulley diameter |
| Splicing | Hot vulcanized or other approved joining method selected according to belt construction and service requirements |
| Take-Up Consideration | Greater longitudinal elasticity should be considered when determining available take-up travel and operating tension |
| Typical Applications | Mining, quarrying, aggregate handling, stone crushing, heavy-duty conveying and applications involving repeated bending or impact loading |
EP vs NN: Elongation and Take-Up
The longitudinal reinforcement has a direct effect on belt elongation.
EP belts generally elongate less because polyester is used in the warp direction. This provides good dimensional stability and can reduce the stretch allowance required by the take-up system.
NN belts generally elongate more because nylon is used longitudinally. Their greater elasticity can be beneficial for flexibility and impact behaviour, but available take-up travel must be checked.
Therefore, replacing an EP belt with an NN belt, or vice versa, should not be treated as a direct substitution without reviewing belt tension and take-up requirements.
EP vs NN: Flexibility and Impact
NN construction generally provides greater flexibility because nylon is used in both reinforcement directions.
This can be advantageous where the belt experiences:
- Repeated bending
- High flexibility requirements
- Demanding troughing conditions
- Heavy impact loading
However, impact resistance is not determined by carcass material alone. Top cover thickness, rubber compound, lump size, drop height, belt speed, loading chute design, and impact idlers also affect performance.
For severe impact applications, the complete belt and loading-zone design should therefore be evaluated.
EP vs NN Conveyor Belt: Which Should You Choose?
Choose EP when the priority is:
- Lower longitudinal elongation
- Dimensional stability
- Controlled take-up movement
- Long-distance conveying
- General heavy-duty bulk handling
Consider NN when the priority is:
- Higher flexibility
- Greater elasticity
- Repeated bending
- Demanding troughing conditions
- Impact absorption
The final selection should be based on the complete conveyor system rather than carcass type alone.
EP vs NN Conveyor Belt: Which Is Better?
There is no universal winner.
EP Conveyor Belt is generally preferred when lower longitudinal elongation, dimensional stability, and controlled belt stretch are important.
NN Conveyor Belt can be preferred when flexibility, elasticity, repeated bending, and impact absorption are important.
The final selection should consider:
Carcass construction + tensile rating + belt width + cover thickness + rubber grade + belt tension + pulley diameter + take-up system + loading conditions + operating environment.
Frequently Asked Questions
What is the main difference between EP and NN Conveyor Belt?
EP uses polyester in the longitudinal direction and nylon transversely. NN uses nylon in both directions.
Which has lower elongation, EP or NN?
EP generally has lower longitudinal elongation than NN because polyester is used in its load-carrying warp direction.
Which is more flexible, EP or NN?
NN generally provides greater flexibility and elasticity because nylon is used in both directions.
Which is better for impact loading?
NN can be advantageous for impact-loading conditions, but cover thickness, rubber compound, material lump size, drop height, loading chute design, and impact idlers must also be evaluated.
Can an NN belt replace an EP belt?
Not automatically. Belt elongation, take-up travel, tension, pulley requirements, and splice design should be checked before substitution.
Does tensile rating determine conveyor capacity?
No. Tensile rating indicates belt strength. Conveyor capacity also depends on belt width, speed, troughing angle, material density, loading, and conveyor geometry.
What information is needed to select an EP or NN belt?
Provide belt width, length, speed, capacity, material, lump size, temperature, inclination, troughing angle, pulley diameter, take-up arrangement, and existing belt specification.
